Description
• Gate weight length: to 6m
• Opening time up to 3m 15s
• Fast opening and automatic closing
• Partial opening function allows safe passage on foot
• Integrated control of external lighting (drive has a built-in lighting receiver)
• Automatic obstacle detection
• No endstops required on the gate
• Reverse rotation direction, no rewiring
• Backup battery in case of power failure
• Safe unlocking by manual opening with an individual key
• Dedicated button “Prog” for programming the transmitter
• Dedicated button “Set” for settings
• Retractable colored terminal blocks
• Easy installation and quick development
• Simple diagnostics
• Encoder technology
• Quiet running

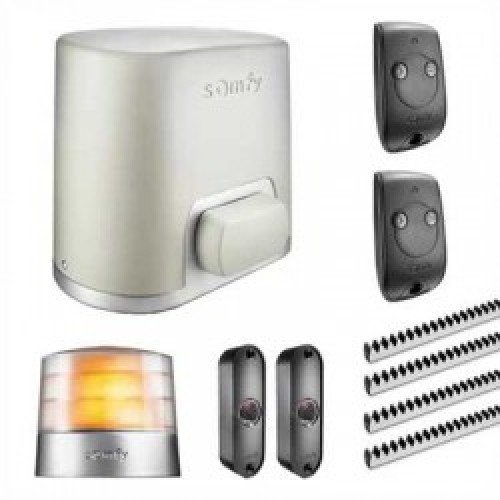

SOMFY ELIXO SMART IO TECHNICAL:
• Mains supply: 220–230 V • 50–60 Hz
• Output power: 24 V DC / 400 mA max.
• Standby power consumption (max): ≤ 5W
• Tractive effort – peak value: 380 N
• Opening time: up to 3m 15s
• Radio frequency: io 868–870 MHz
• Number of storable remote control devices:
– Unidirectional: max. 38 channels
– Bidirectional: unlimited
• Lighting output: Dry contact (230V compatible)
• Drive direction: Reverse drive direction with simple push buttons
• Wicket function: 1.20 m (only adjustable with device Set & Go)
• Wired diagnostic input
• Real-time status indicator for wired accessory input
• Security class: IP 44
• Working conditions: –20°C to +60°C
• Dimensions: 267 × 263 × 163 mm
