Description
• Residential use
• 230 Vac
• Up to 500 kg
• Integrated device that guarantees maximum precision during the automation manoeuvring steps
• 433.92 MHz Receiver equipped exclusively with Advanced Rolling Code (ARC)
• 64 transmitters storable inside the receiver
• BENINCA BULL5M
• 230Vac motor gear for sliding gates for residential use up to 500Kg
• Release device entirely of metal equipped with personalized release key
• Maximum safety and accuracy during the operating phases of the gate thanks to the built-in encoder device
• The lines and the design make BULL a product perfectly suitable in most architectural contexts
• Available in kit with all accessories

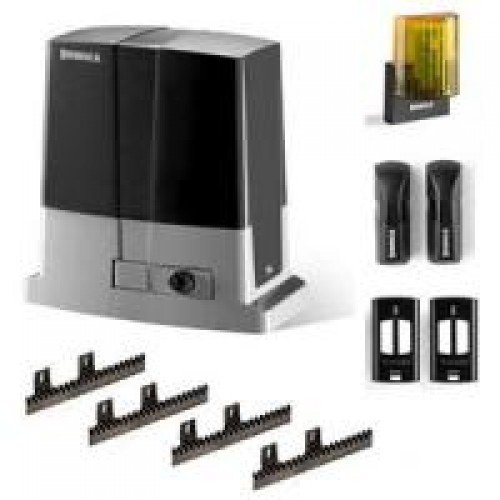

BENINCA BULL5M Kit Includes:
• 1 × Beninca Bull5M Gate Motor
• 2 × Beninca Remote Control 433.92 MHz
• 1 × Pair of photocells for outdoor use
• 1 × Control Unit (Inbuilt in the motor)
• 4 × Nylon Rack 1m
• 1 × Blinker light
• 1 × Push Button
BENINCA BULL5M Technical Data:
• Power supply: 230 Vac (50-60Hz)
• Motor supply: 230 Vac
• Max absorbed current: 1.3 A
• Maximum thrust: 650 N
• Opening speed: 10.5 m/min
• Duty cycle: 30%
• Protection level: IP44
• Built-in control unit: yes
• Integrated receiver: yes
• Encoder: yes
• Virtual encoder: no
• Magnetic limit switches: no
• Pinion for rack: M4 Z18
• Operating temperature: –20°C to +50°C
• Lubrication: GREASE
• Maximum gate weight: 500 kg
• Weight: 11.3 kg
• Kit weight: 12.1 kg
