Description

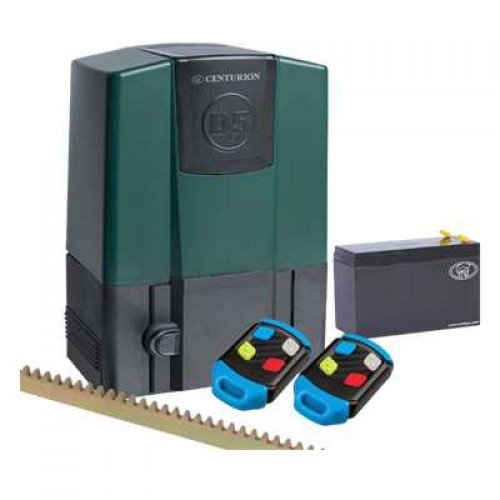

• CENTURION D5 Evo 24V Industrial Sliding Gate Motor
PRODUCT INFORMATION:
• Battery backup
• Intelligent speed control
• High duty cycle capability
• Smooth acceleration and deceleration
• Multiple operating features, including Intruder-detection Alarm Modes
• Exceptionally easy system setup via LCD user interface
• Onboard CENTURION code-hopping multichannel receiver with selective add and delete
CENTURION D5 EVO TECHNICAL DATA:
• Input voltage: 90 – 240V AC +/-10%, 50Hz
• Motor voltage: 12V DC
• Motor power supply: Battery-driven – 2A charger
• Push force rated: 17kgf
• Gate speed at push force < 5kgf: 22m/min
• Gate speed at rated push force: 18m/min
• Duty cycle (mains present): 50% | 150 max operations per day
• Duty cycle (battery): 20% | 55 max operations per day
• Gate mass maximum: 500kg
• Onboard receiver type: CENTURION code-hopping
• Multichannel receiver: 433MHz, capacity – 500 transmitter buttons
