Description
• Up to 400 kg
• Solution for sliding gates at private homes
• Encoder-based movement control
• Complies with the rules on impact forces
• Set up for operation in case of power outage
• Self-diagnosing, hardwired safety devices
• Control board with terminal blocks, dip switches and storage for up to 25 users
• On-board rolling code decoding
• A single version with encoder-based control for gates weighing 400 kg and measuring up to 10 m
• Safety is ensured by the encoder’s movement control function
Specifications for CAME BX-64:
• Limits of use: up to 400kg or up to 14m
• Protection class: IP 54
• Power supply, V: ~ 230 (50/60 Hz)
• Motor power supply, V: ~ 230 (50/60 Hz)
• Maximum current consumption: 2.6 A
• Maximum power: 200W
• Rotation speed (rpm): 15
• Usage intensity: 30%
• Torque: 300Nm
• Operating temperature range, °C: –20 to +55
• Maximum engine temperature: 150°C

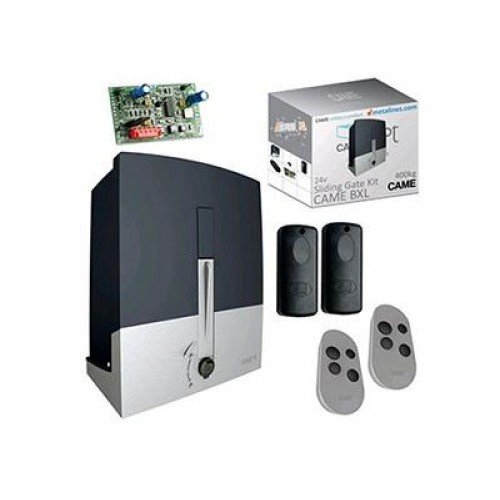

What’s Included:
• 1 × Came BX 400 Kg Motor with electromechanical limit switch
• 1 × Integrated control unit
• 2 × Remote control
• 1 × Pair of Photocells
• 1 × Remote receiver
• 1 × Blinker Light
• 1 × 4m Nylon Rack
• 1 × Push button
