Description

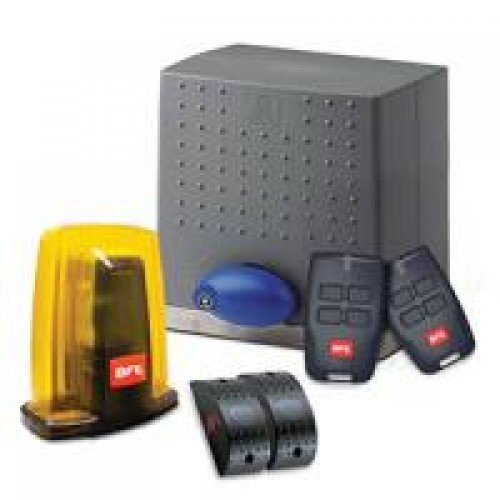

BFT DEIMOS 500 KG
BFT DEIMOS 500 BT 24V automatic opening kit for sliding gates up to 500.
SMART TECHNOLOGY
• Electromechanical microswitches that control the end stroke (inductive on the prox version)
• Incorporated two-channel rolling code radio receiver
• Control unit with self-learning and self-diagnostic functions
• Control unit compatible with the EELink protocol
SAFE USE
• The version powered at 24V has been specially designed for simpler and faster installation in compliance with the safety standards laid down by the Machinery Directive
• Thanks to the antisquashing system, the operator inverts motion and prevents damage to people and property in the event of contact (BT version)
SIMPLER INSTALLATION
• Incorporated control unit positioned frontally for easier accessibility
• Control unit with programming by LCD display (BT version)
Technical features:
• Control board: QSC D MA (incorporated)
• Reversible/irreversible operator: irreversible
• Power supply: 230 Vac ±10%, 50 Hz single-phase
• Motor power supply: 24 Vdc
• Absorbed power: 70 W
• Thermal protection: 120°C, integrated
• Leaf speed: 12 m/min
• Output revolutions: 79 min
• Pinion pitch: 4 (14 teeth)
• Impact reaction: electronic torque limiter
• Type of limit switches: electromechanical or inductive
• Manual release: mechanical release with knob
• Operating cycle: intensive use
• Environmental conditions: -20°C to +50°C
• Degree of protection: IP24
• Maximum leaf weight: 500 kg
• Maximum length of gate leaf: 6 m
• Maximum torque: 20 Nm
• Operator weight: 70 N (~7 kg)
